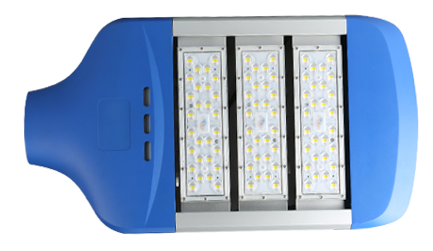

Outdoor Road Lighting 120w Module Led Street Light Aluminum Heat Sink Replace 400W HPS
Advantage of lepower street light
- High lumen output. The original lumen of LED is 200lm/w,the lumen output of complete lamp is 150-160lm/w,It can save more energy (60%-70%) than normal led lamps and traditional lamps.
- Adoption Lepower exclusive light source and ZAG Lens.Compared with similar products,the luminous efficiency can be rised 8% and light transmittance up to 98%.
- With Excellent exterior design, the lamp is waterproof and dustproof, protecting rate: IP66.
- Honeycomb briquette effect heat dissipation principle, best thermal management system;
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
- The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
- Minimum 70 CRI; Ra80 optional
- 5 years limited warranty.
Product parameter
Electrical Specifications
|
|
| Model | Power | Input Voltage | CCT | CRI | Luminous
Efficiency | Flux |
| LY-L1303 | 120W | AC 100-277V
50/60Hz | 3000K
4000K
5000K
6000K | ≥70 | 160lm/w | 19200lm |
Mechanical Specifications
| Beam Angle | IP Rating | PF | Pole diameter | Warranty | Operating
Temperature | Storage
Temperature |
| 150*70 degree | IP66 | >0.95 | φ60mm | 5 years | -40~50 ℃ | -40~85 ℃ |
IES test report ( light distribution, Lumen, Luminous efficiency etc)
Installation procedure
- Connect the wires to the AC wire,Make sure that Yellow-green ground wire grounding reliably.
- Remove the screws of back cover,open the back and remove the back cover.
- Through the poles into the adapter,tighten the screws firmly on the lamp poles.
- Put the back cover back and tighten the screws.
Quality Control
1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
5. We will try our best to help clients when problem occurred.
