Super Bright 80W 100W Industrial Outdoor LED Flood Lights , Durable Patent Design 110v LED Flood Light

Shenzhen Lepower Optoelectronic Co., Ltd
Contact Now

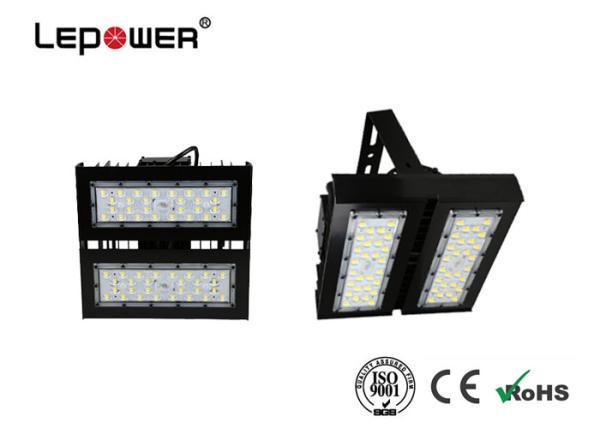

Super Bright 80W 100W Industrial Outdoor LED Flood Lights , Durable Patent Design 110v LED Flood Light

  • 1
  • 2

Brand Name : LEPOWER(Shenzhen)

Model Number : LY-TL0102

Certification : CE RHOS UL TUV CB SAA

Place of Origin : China

MOQ : 50pcs

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Delivery Time : 5-8 work days

Packaging Details : Neutral carton packing

Power : 80W / 100W

CRI : Ra>70

IP Rating : IP66

Beam angle : 145x90°

Power Supply : MOSO/MEANWELL

Warranty : 5 years

Contact Now

Patent Design Super Bright 80W 100W LED Tunnel Light 160LM/W Durable Module Design

Product specification

Model LY-TL0102
Power 80W 100W
CCT 3000K / 4000K / 5000K
Beam angle 145X90°
Chip Brand Bridgelux / San'an
LEDs Qty 54pcs
CRI >70
Efficiency >160Lm/W 160lm/w
Lumen 12800lm 16000lm
IP Rate IP66
Working Voltage 90-305VAC 50/60Hz
Working Tempeature -40℃~50℃,20%~90% H.R
Storage Temperature -40℃~85℃10%~90% H.R.
Power Efficiency 93%
Power Factor >0.98
Lifespan 50000H
Housing Material AL6063-T5

Product Feature

  1. The smooth linear and the LED structure characteristic organic combination,Appearance simplicity and comfortable,The concept design of the humanized structure of the lamp.
  2. To maintain good heat dissipation effect, to ensure the life of LED.
  3. The whole lamp protection level is good, reaching IP65.
  4. Unique two light distribution design, the lost light curve is a bat wing, the standard rectangular light spot, to ensure that the light distance in the 40M can achieve good uniformity.
  5. Long life power supply to ensure that the service life of 50000 hours or more, with the short circuit protection, open circuit protection, thermal protection and other multiple protection functions,to achieve synchronization with the LED lamp life.

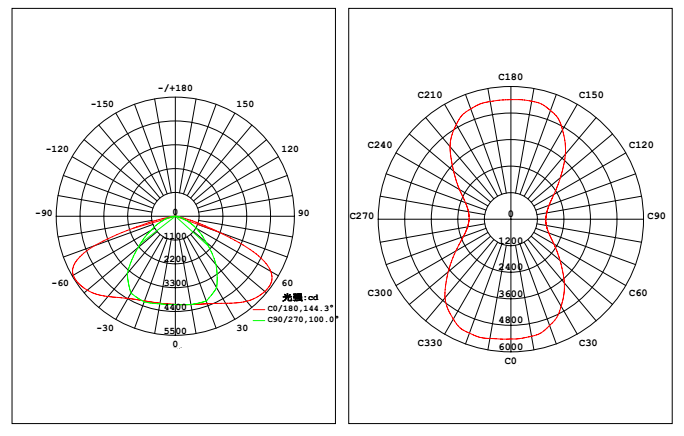

Light distribution

Super Bright 80W 100W Industrial Outdoor LED Flood Lights , Durable Patent Design 110v LED Flood Light

Dimension and Packing info

Super Bright 80W 100W Industrial Outdoor LED Flood Lights , Durable Patent Design 110v LED Flood Light

Light size 257*289*110mm ±5mm

Package size

(1PCS/Carton)

345*325*242mm ±5mm
Light N.W. 4.53kg ±0.1kg

Warranty terms

  • 5 years warranty.
  • Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, Lepower will provide free/rework new products based on the proof-documents
  • If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, We will provide paid maintenance within warranty period.

Application

This Product mainly applies to tunnel, bridge, large warehouses, stadiums and kinds of manufacturing, engineering construction and other places of large area flood lighting.

Super Bright 80W 100W Industrial Outdoor LED Flood Lights , Durable Patent Design 110v LED Flood Light
